FRP Mesh Grating

Description

Default product color is Grey. For other color options, please call us before placing your order.

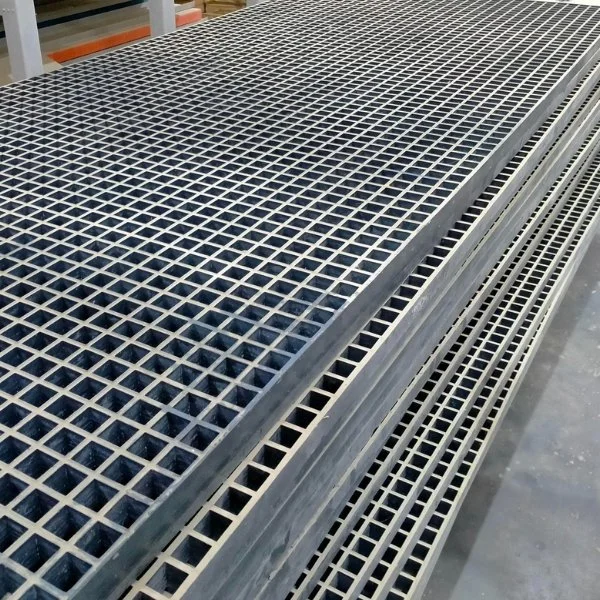

Meerpur Industries’ FRP mesh grating is lightweight, corrosion-resistant, and durable, ideal for industrial and urban use. Meerpur Industries offers various mesh sizes, including mini and micro, meeting ADA and safety standards. Meerpur Industries ensures high strength, slip resistance, and low maintenance.

Mesh Grating Size Details

Item	Load Capacity (M.Ton)	Clear Opening (A)	Cover Size (B)
Grating-30	5	30×30	8
Grating-32	10	32×32	8
Angle-35	5	35×35	4
Angle-45	1/10/1900	45×45	4

Frame Size & Height Details

Item	Frame Size (C)	Frame Height (D)
Grating-30	1120×2262	20
Grating-32	1160×2430	23
Angle-35	–	–
Angle-45	–	–

FRP Mesh Grating Physical Characteristics

Characteristic	Details
Shape Available	Circle, Square, Rectangle, and Customized
Working Temperature	-10 to 120 degrees Celsius
Noise	Reduced noise and vibration
Conduction	Non-electricity and heat conduction
Color	Standard gray (customization available)
Surface Treatment	Anti-slip, anti-UV
Technique	Mold Pressing
Packing	Cardboard or as per customer’s need

FRP Mesh Grating Technical Specification

Description	Meerpur Manhole Cover Performance
Longitudinal Strength	250 – 600 MPa
Compressive Strength	300 – 600 MPa
Stretch Modulus	25 – 35 GPa
Break Elongation Ratio	1.3 – 10.0%
Bending Strength	700 – 1400 MPa
Poisson’s Ratio	0.35
Relative Density	1.11 – 1.15
Water Absorption (24h)	10 – 30 mg

FRP Mesh Grating Load Testing

FRP/GRP/COMPOSITE products are tested for LD (2.5/5 Mt), MD (10 Mt), HD (20 Mt), and EHD (35 Mt and above) load-bearing and permanent set as per BS EN: 124, IS: 1726 (1991). BS EN: 124 is a testing code worldwide for manhole covers in cast iron, ductile iron, and other materials.

Permanent Set is a multiple loading test to determine the permanent deformation in covers after multiple loading within a short time as specified in the code.

We have an in-house testing facility where we conduct regular tests batch-to-batch for quality consistency in the product.

Additional information
